Description
Compressor data:
Compressor: Viair 280C
Length: 20 cm
Width: 10 cm
Height: 16 cm
Max ampere: 16 A
Thermal protection: Yes
Filling time:
- 0 to 10 bar: 3 min. 40 sec.
- 7.5 to 10 bar: 1 min. 15 sec.
Tank data:
Length: 48 cm
Width: 15 cm
Height: 34 cm
Hose outlet: 1/2 (12 mm)
Capacity: 8.8 L
Maximum pressure: 10 bar
Horn duration: 5 sec.

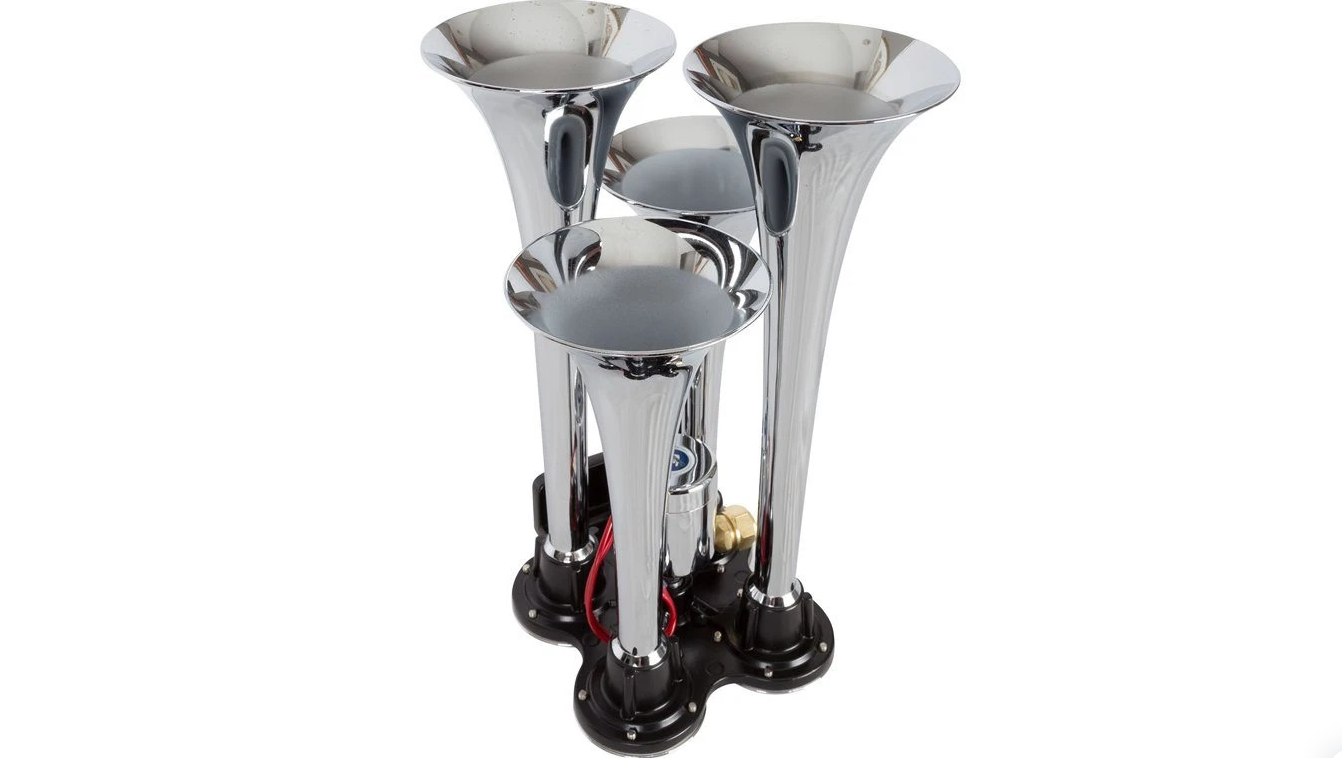

Horn data:
Length: 28 cm
Width: 14 cm
Height: 15 cm
Number of dB's: 155 dB (can still be heard at 4 - 5 km distance).
Material: aluminium
Colour: Chrome
The set will be delivered incl:
- mounting material
- pressure switch
- air hose
Wiring diagram:
This product comes with 1 year warranty
